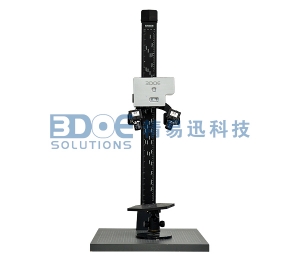

3D scanner (Precision) PTS-S
Product Category:3D scanner system (Precision)
產(chǎn)品型號(hào)：PTS-S (Precision)
產(chǎn)品描述：PTS-SO Non-contact white light scanning, be adept in measuring both solid and soft objects. Speedy scanning, capture at least 1 million pixels within 5 seconds. High precision.
Principle:
3DOE scans complete surface of object, then achieve one-step measuring and digitizing by the means of computer-vision, photo-electricity sensor, graphics designer & software control.
Product’s functions:
Non-contact white light scanning, be adept in measuring both solid and soft objects.Speedy scanning, capture at least 1 million pixels within 5 seconds.
High precision: 3DoE adopts high-end computer vision technology and own patent. Measuring precision is 0.02-0.05 mm without void point.
Portable machine, which can be delivered to work place lightly.
Work indoor or outdoor, without need of darkroom, flexible adaption with measure environment,
Hyperfocal distance, from 300 to 500 mm.
Automatic & precise assembly with multi-probes. Object can be moved & turned with random.
Rapid mesh capture, can get realistic surface of object.
Powerful & handy operational software, which patent is owned by our company.
Flexible data interface, supporting ASC, IGES, can be imported & exported with Pro/E, UG, Imageware, Geomagic , AutoCAD, etc.
Models and technical specifications:
Type | PTS-SO |
Manner | Non-contact |
Measuring Area | 100 x 75 - 200 x 150 mm2 |
The largest measure scope | 1000×750×750 mm3 |
Resolution | 1.3M pixels |
Measuring precision | 0.015 ～ 0.03 mm |
Measurement time | ≤5s |
Point Spacing | 0.05～0.15 mm |
Operation distance | 300 ～ 2000 mm |
File format | ASC, IGES, STL, VRML, DXF |
Assembly | Auto |
Computer | WindowsXP/win7 |
